GGR Supplies ATG-7502 ATG Tape (Acid Free Adhesive Transfer Tape): 36 yds.
ATG Tape or Reverse Wound Transfer Tape
Product Description

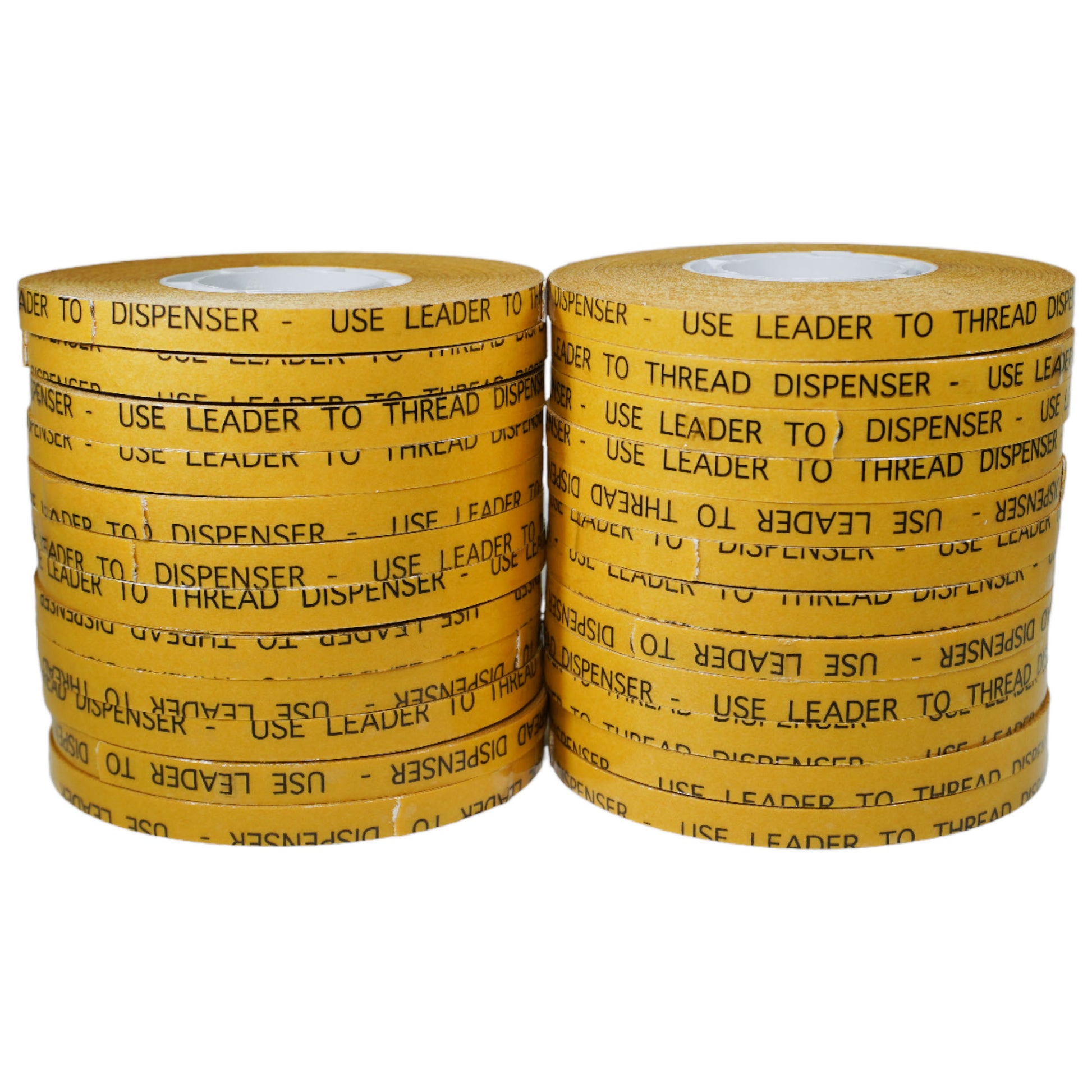

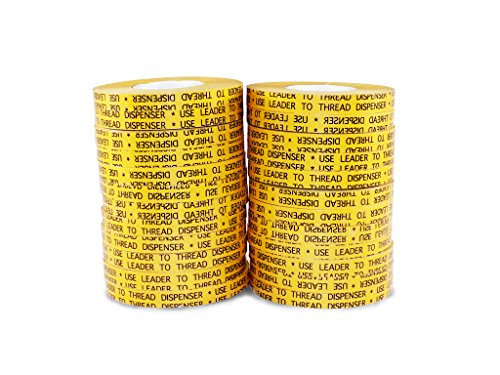

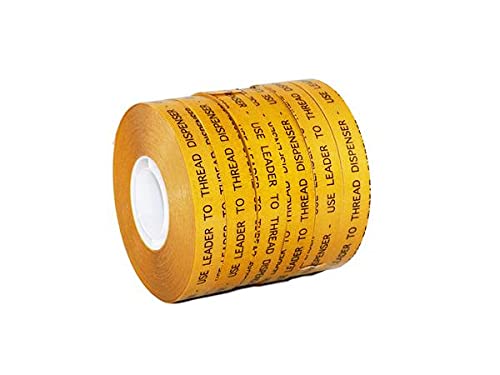

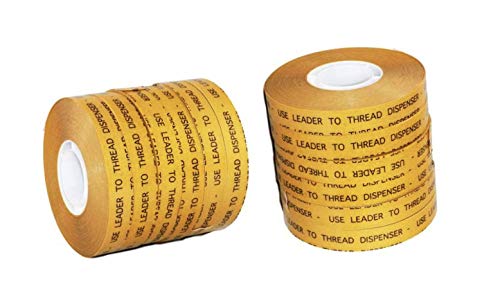

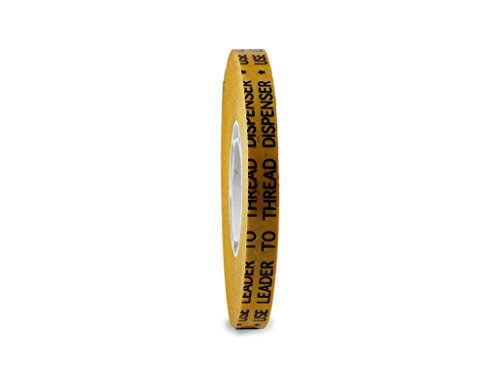

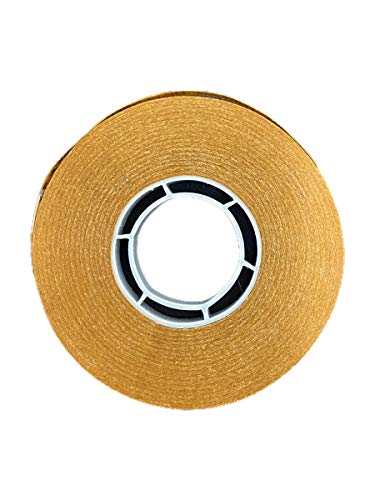

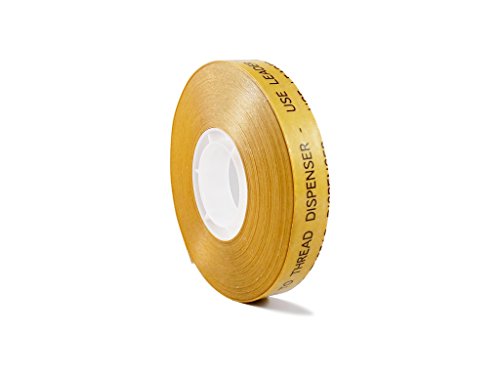

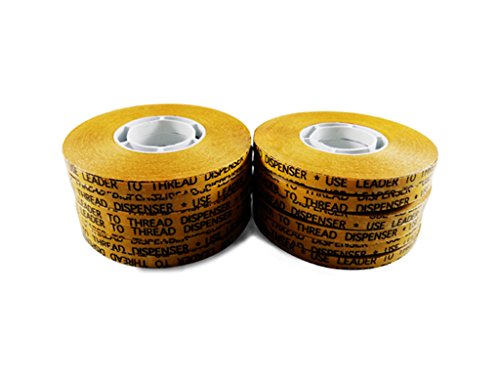

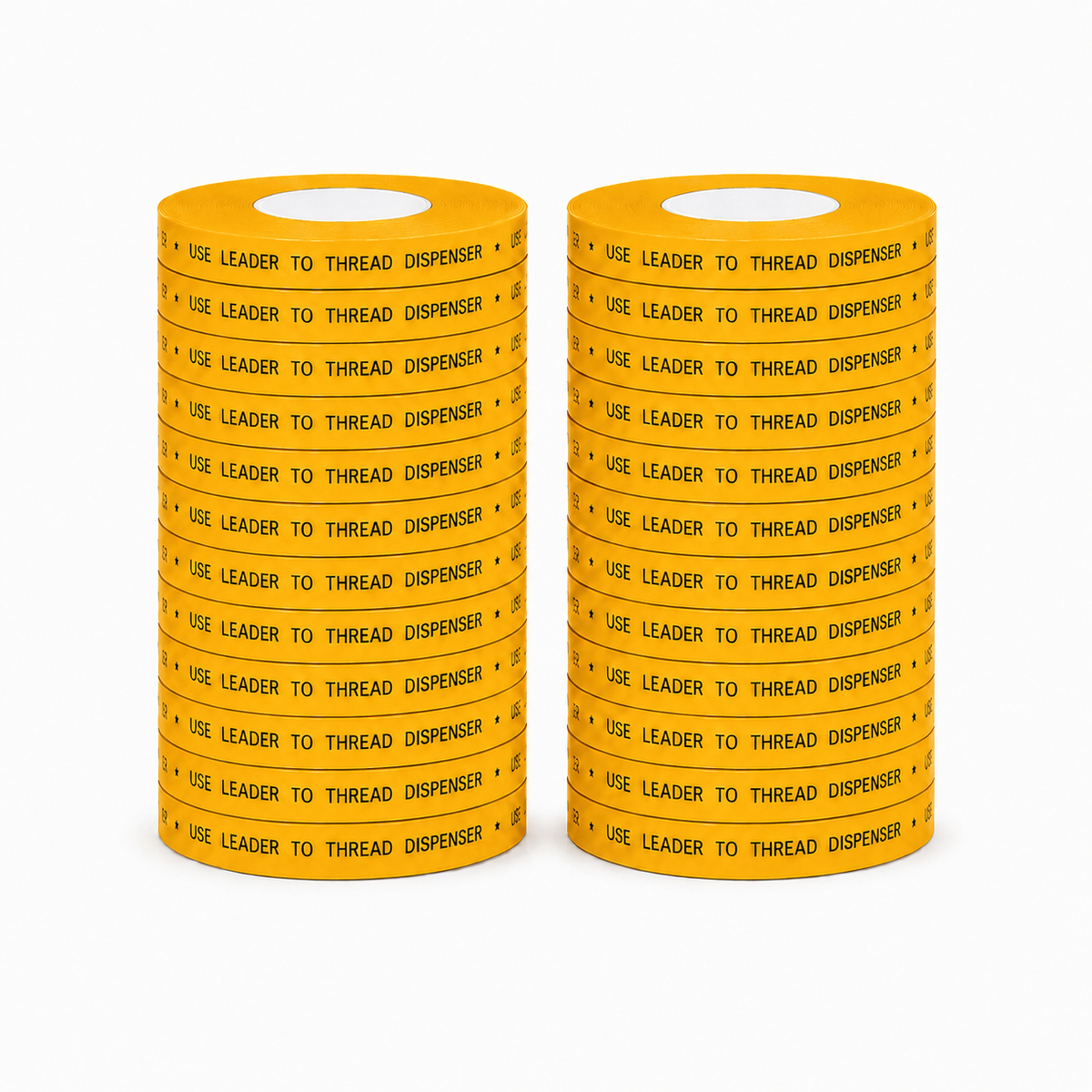

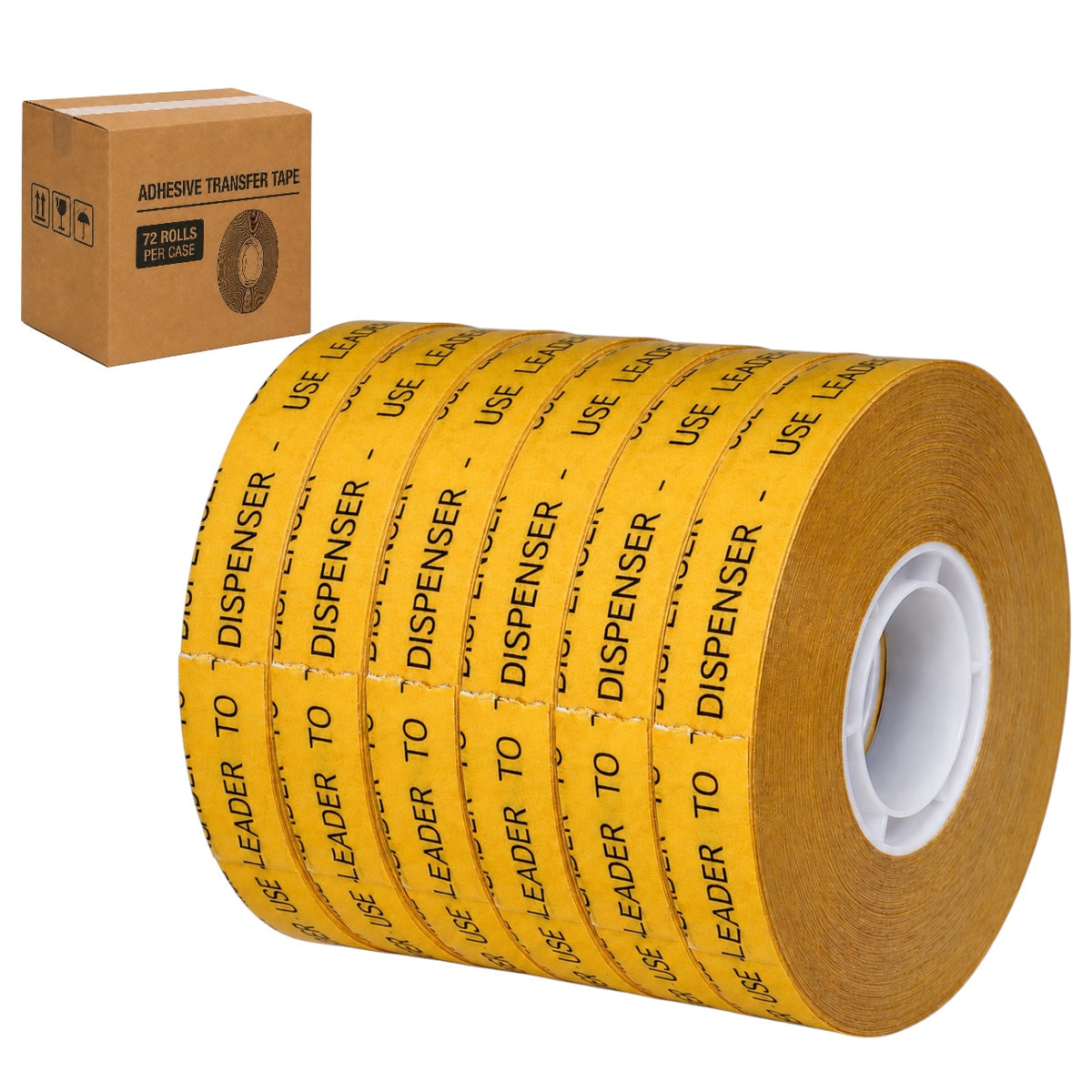

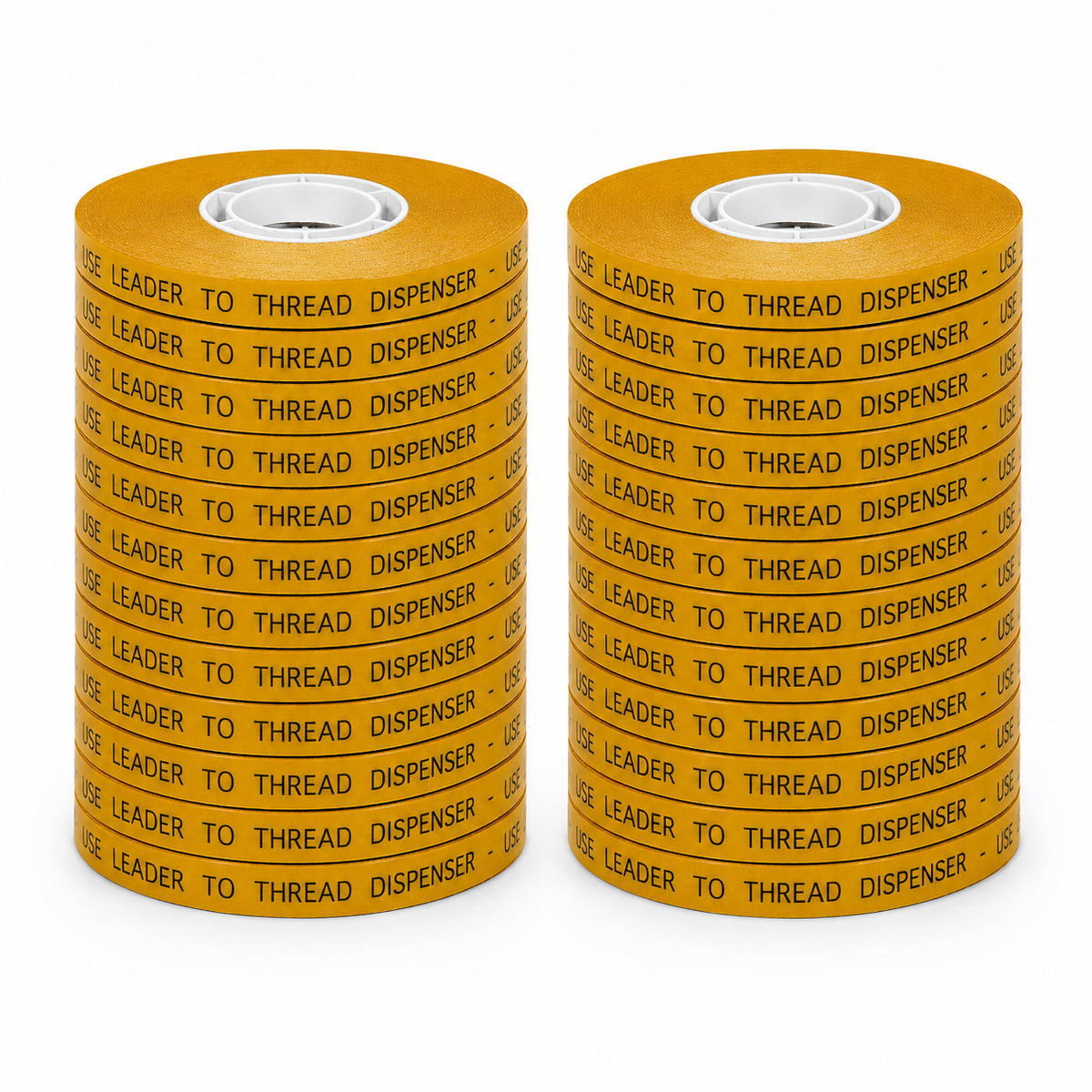

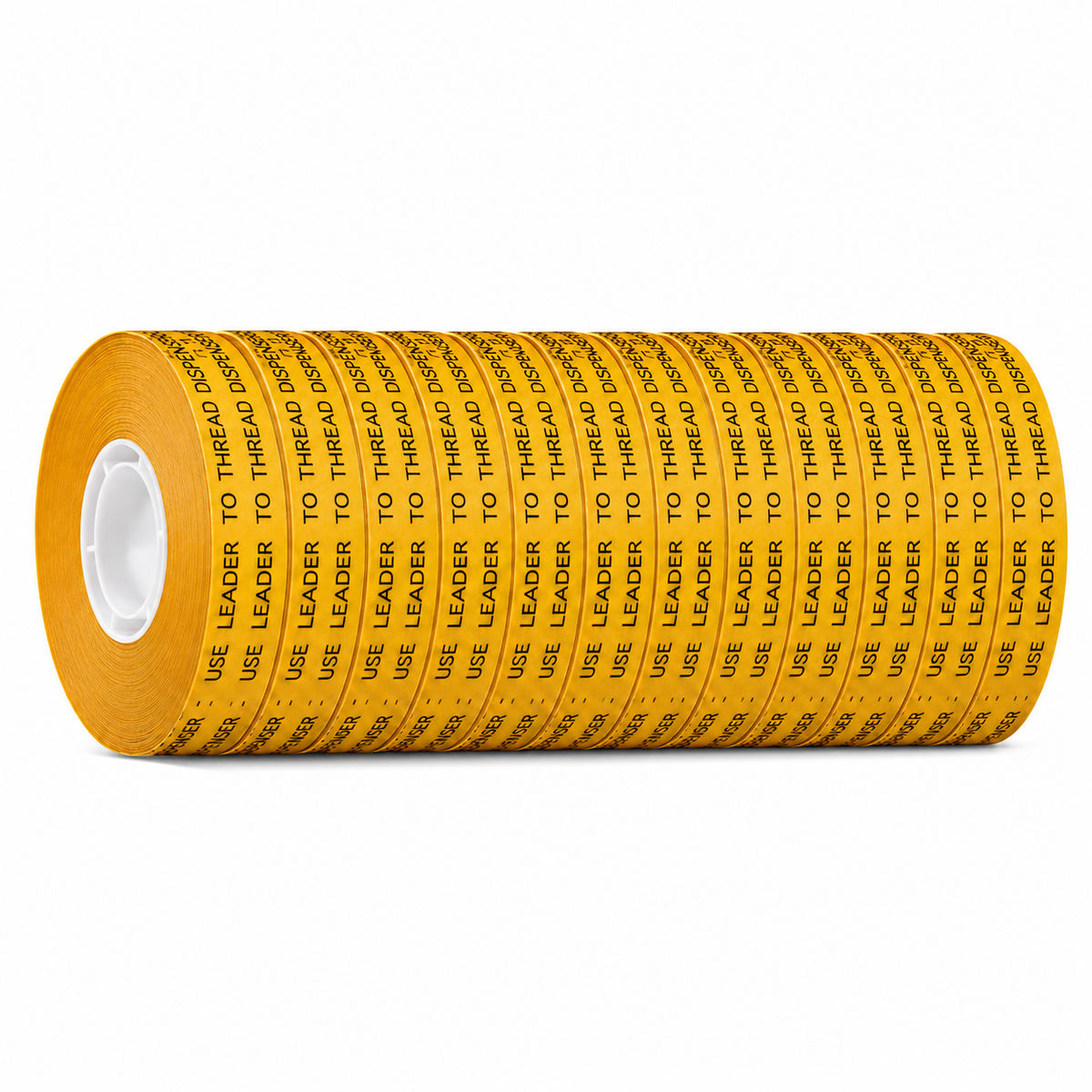

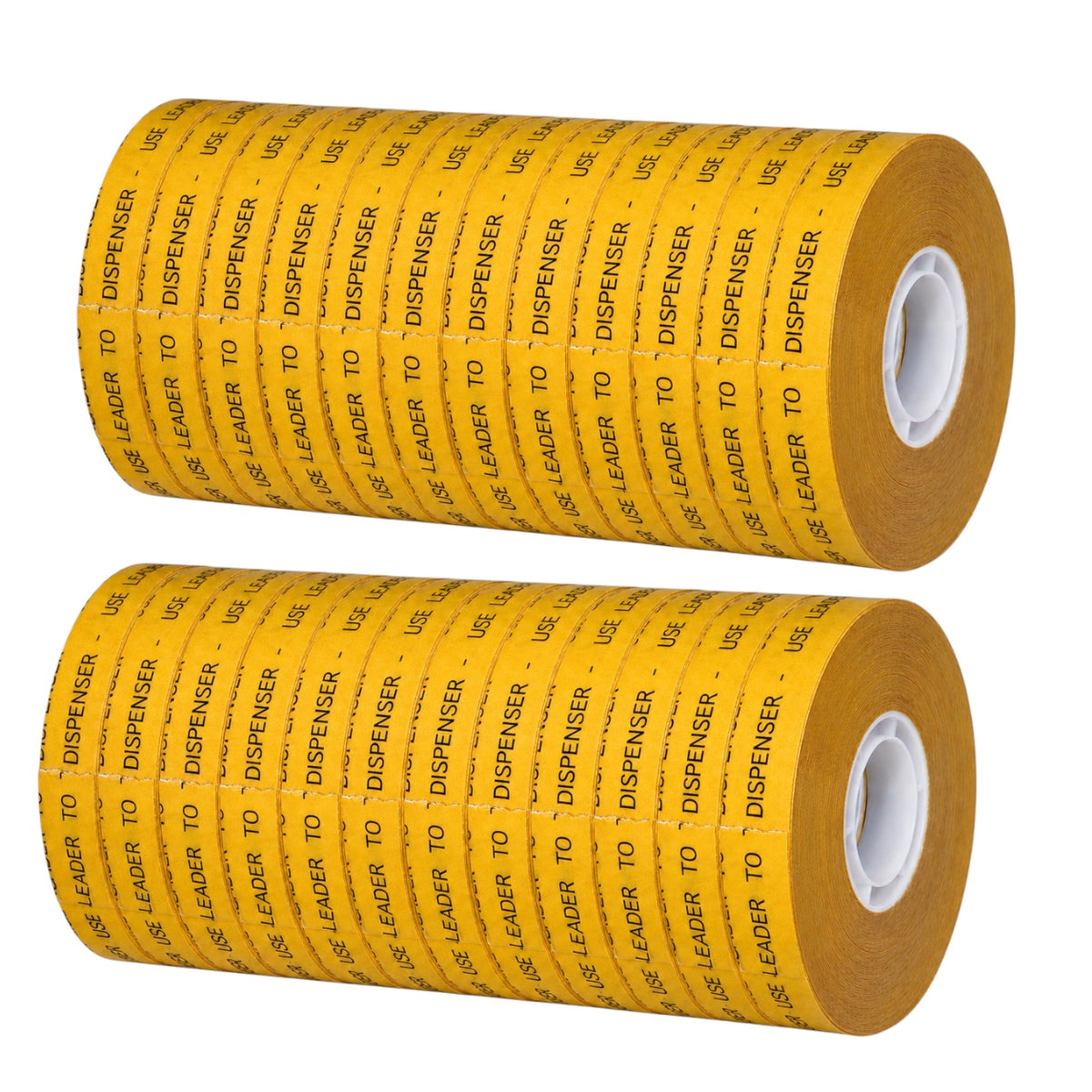

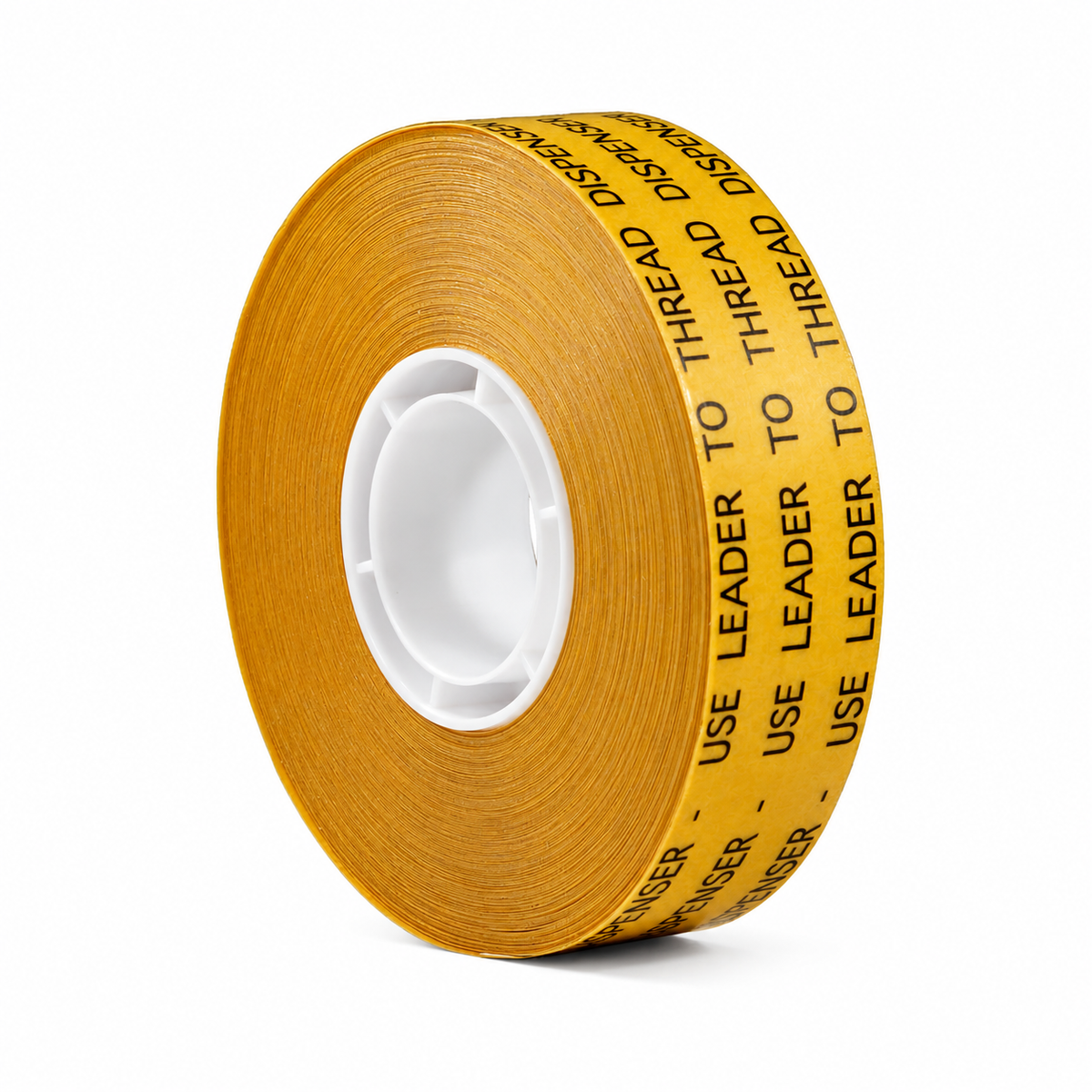

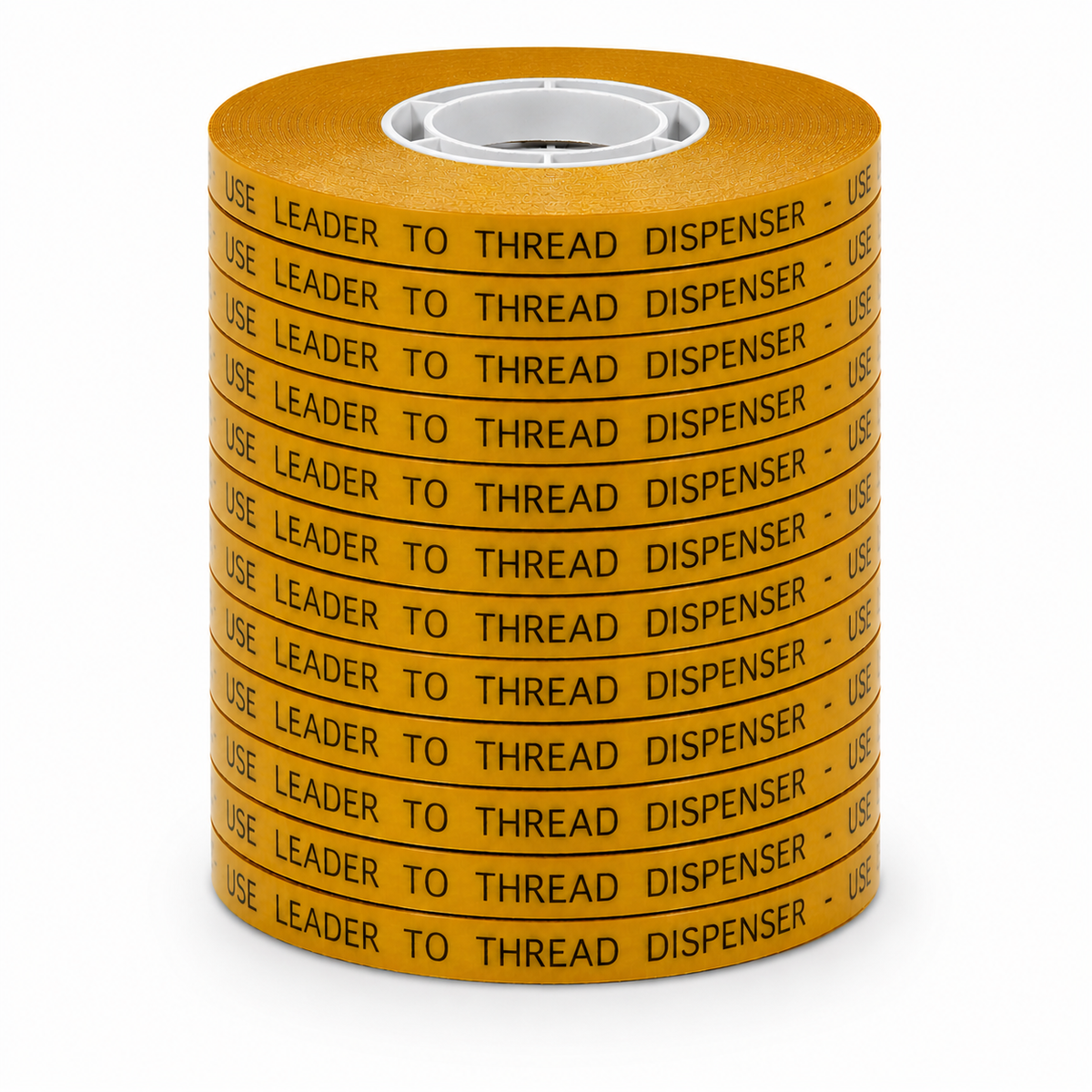

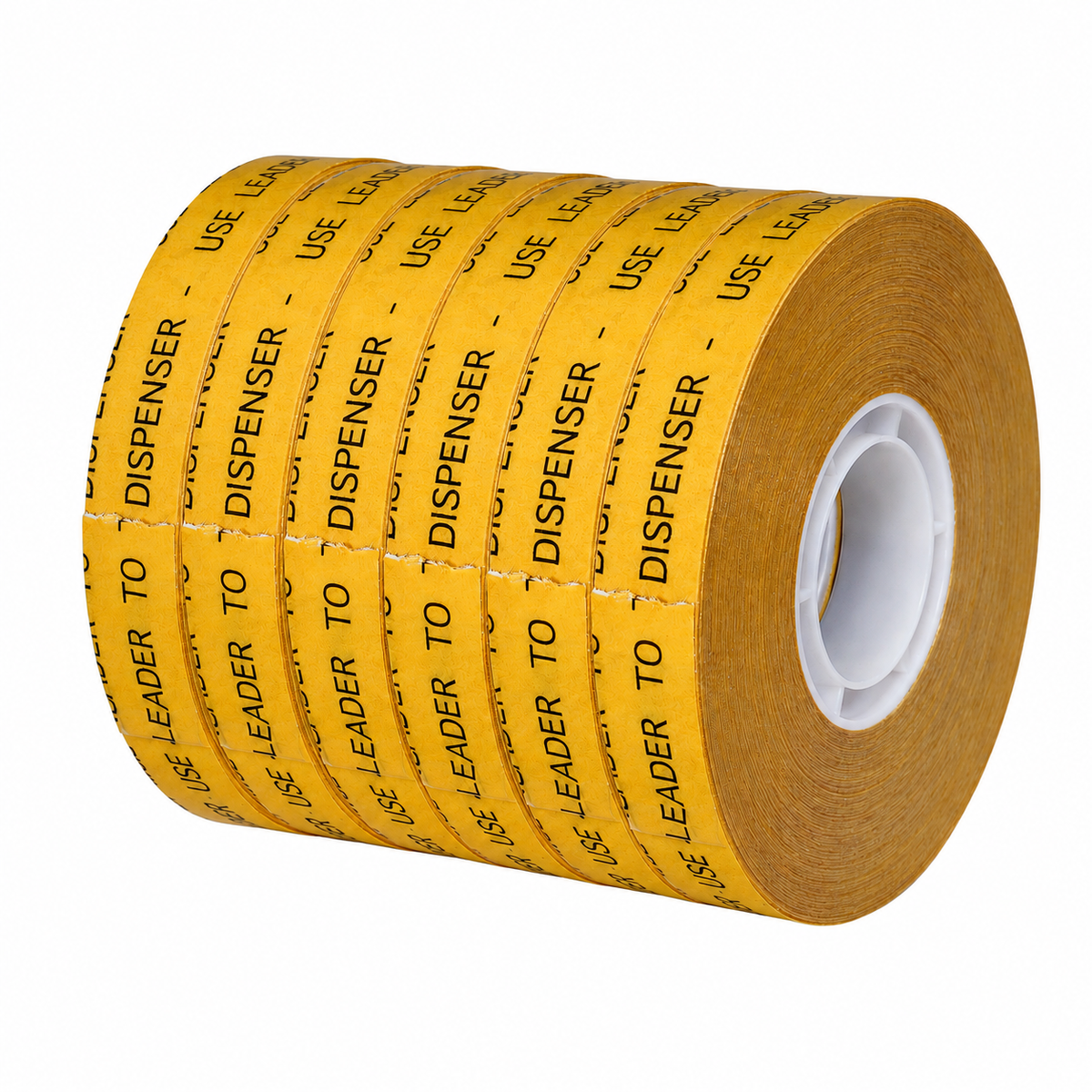

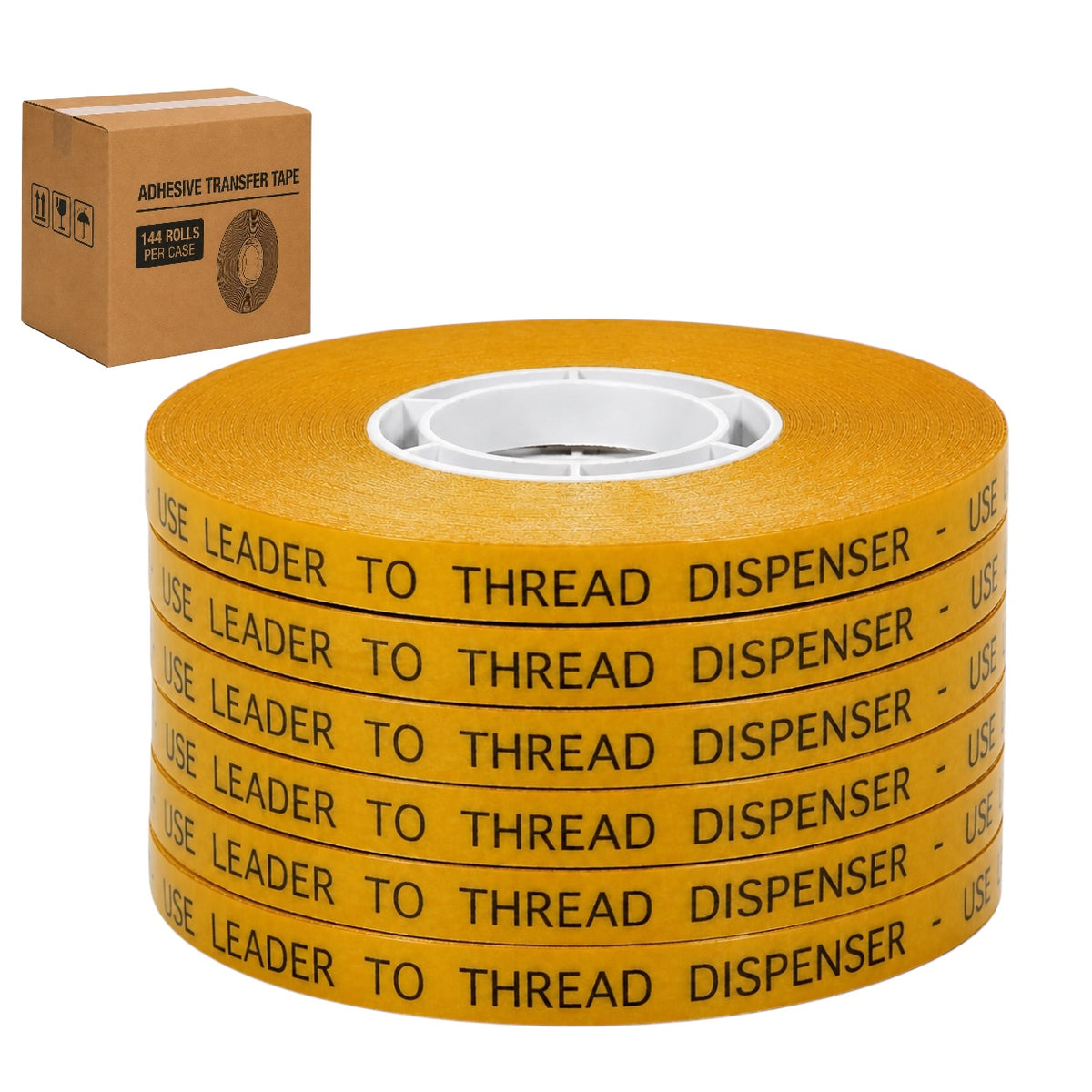

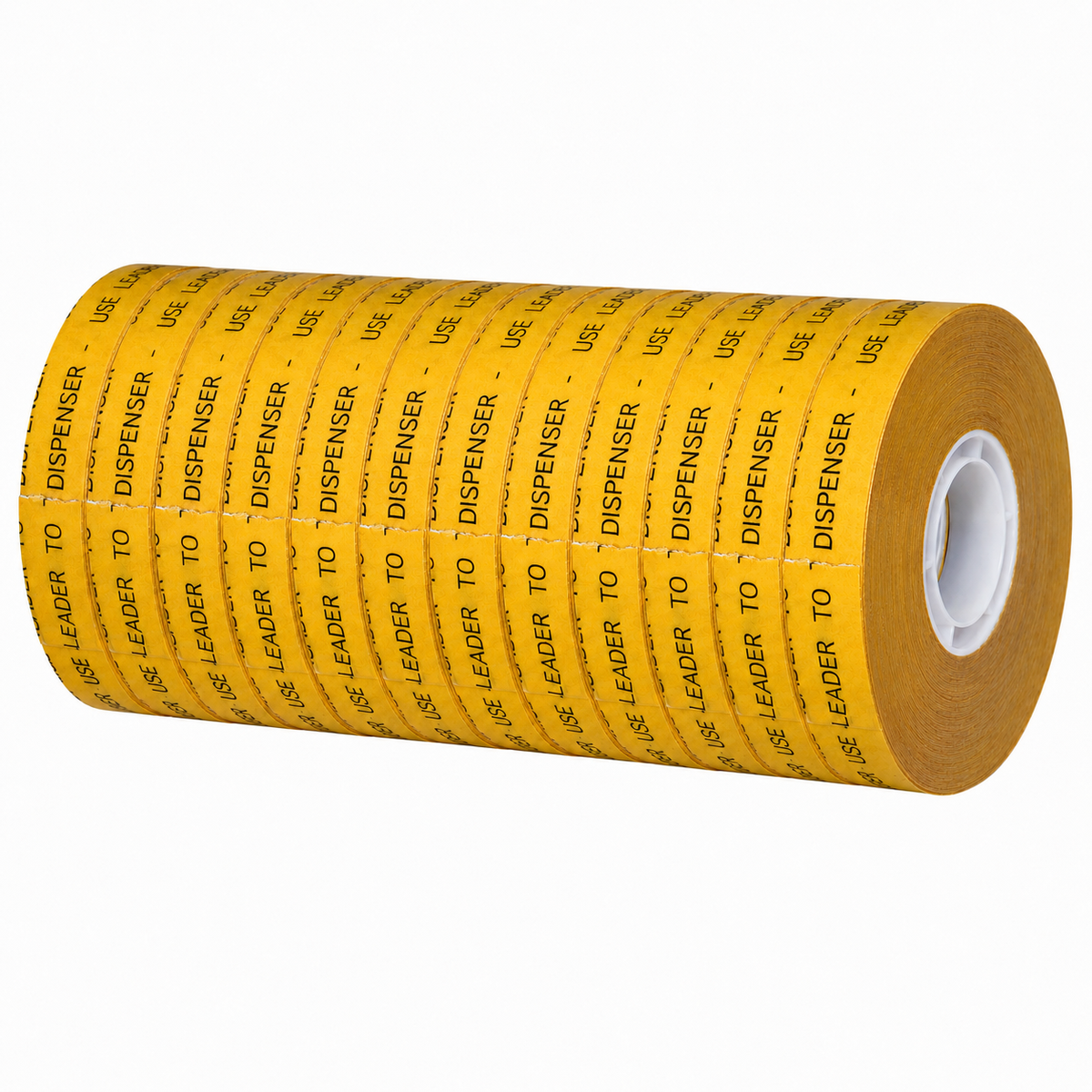

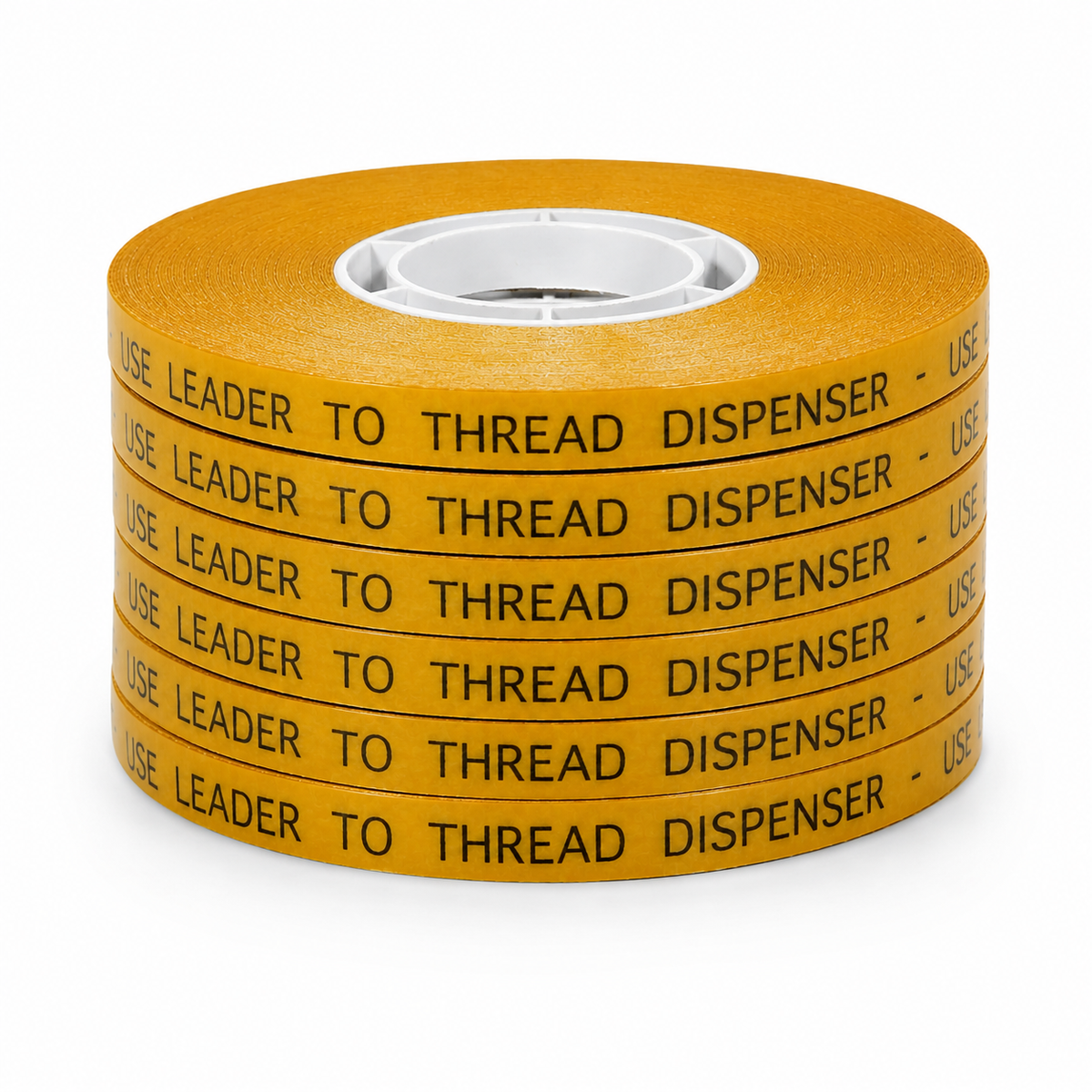

T.R.U. ATG-7502 is a Glass stabilized Solvent Based Acrylic Adhesive reverse wound transfer tape with gold siliconized paper liner reverse wound on a 1" plastic core designed to be used in an ATG dispenser/Gun. Pressure-sensitive adhesive pre-applied to a special release liner has good adhesion to paper, most plastic films, and metal foils. Tape is acid neutral (Acid Free) and is not soluble in water.
Applications
General mounting and holding - product assembly - design and packaging of prototypes - mounting nameplates - picture framing - paper web splicing - sealing envelopes
ATG Dispenses to be used
• T.R.U. ATG-50 Dispenser
• Scotch 700 Yellow Dispenser
• Scotch 085 Pink Glider (Please leave a note if using this Gun)
Properties
• Adhesive: Solvent-Based Acrylic
• Thickness: 2.0 mils (carrier + adhesive)
• Release Liner: 50# gold paper
• Adhesion: 27 oz/in (to stainless steel test panel)
• Temperature Resistance: -22 F to +230 F
• Core: 3 inch diameter
Alternative to 3M #924 & #987; Scapa #TD-200; Shurtape #TG-356; Tesa (NOPI) 7002-PV9.

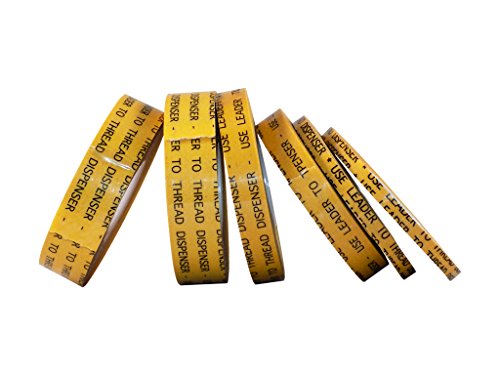

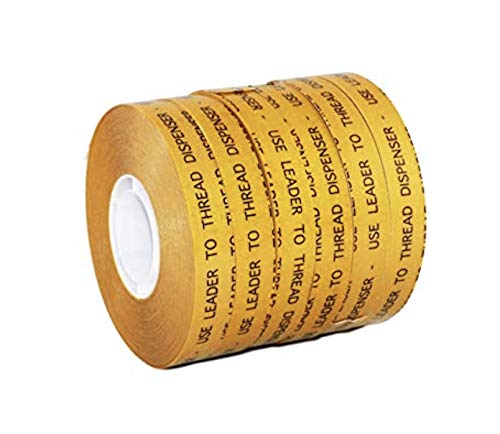

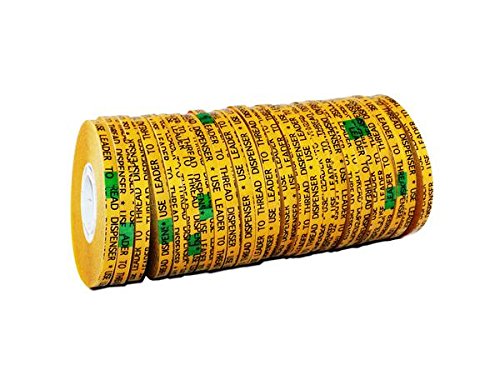

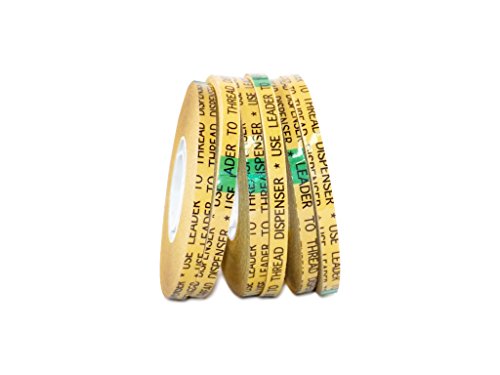

Note: Sizes will be the tape industry standard metric sizes, ex. 12mm for every 1/2 inch of nominal value tape width (Rolls are give or take 5% wider or narrower than the nominal size).
